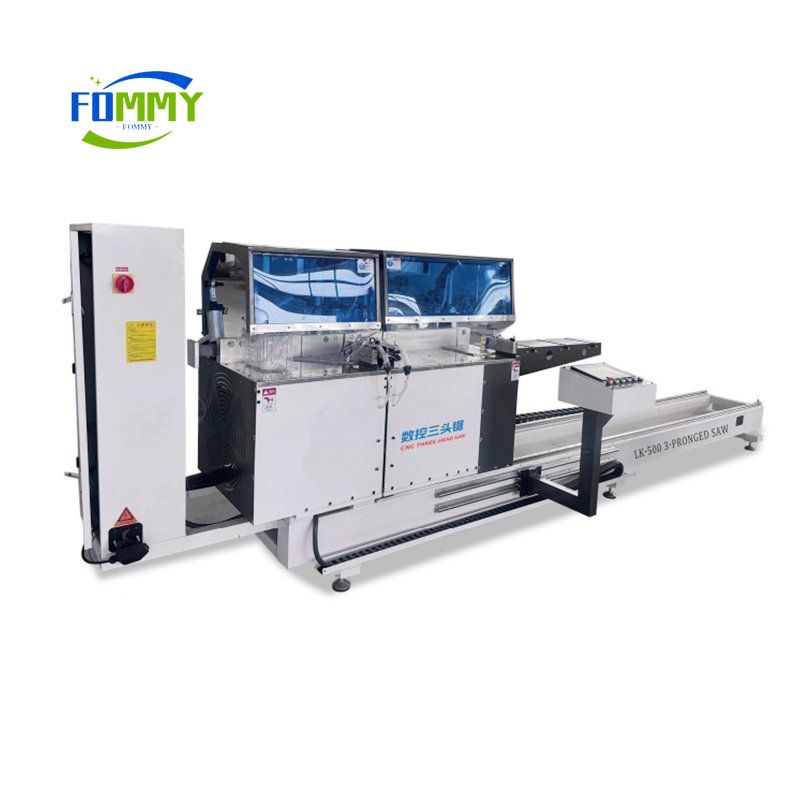

Model 500 45°90° CNC Triple Saws

Inquire Now None

Product features

500 CNC three - head saw, heavy - duty body design, the overall use of high - strength steel plate welded together, the overall structure of the frame is stable, fully automatic CNC operation, the machine is equipped with a total of three sets of cutting head, you can cut the material at the same time at both ends of the 45° and 45° angle, you can also cut the material at both ends of the 45° and 90° angle, the CNC operation screen to enter the cutting data can be automatically complete the cutting process, the cutting effect of precise cutting fast.

Scope of application

The machine can cut aluminum alloy, wood lines, pvc and other materials, widely applicable to all kinds of sliding doors and swing doors, broken bridge aluminum doors and windows, plastic steel doors and windows, sun room materials and a variety of required wood board materials.

Model 500 45°90° CNC Triple Saws

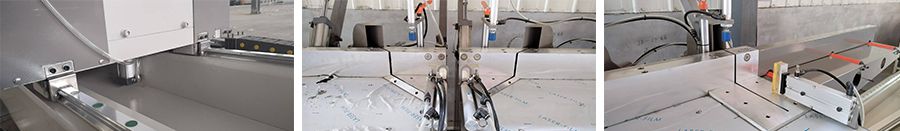

Product details

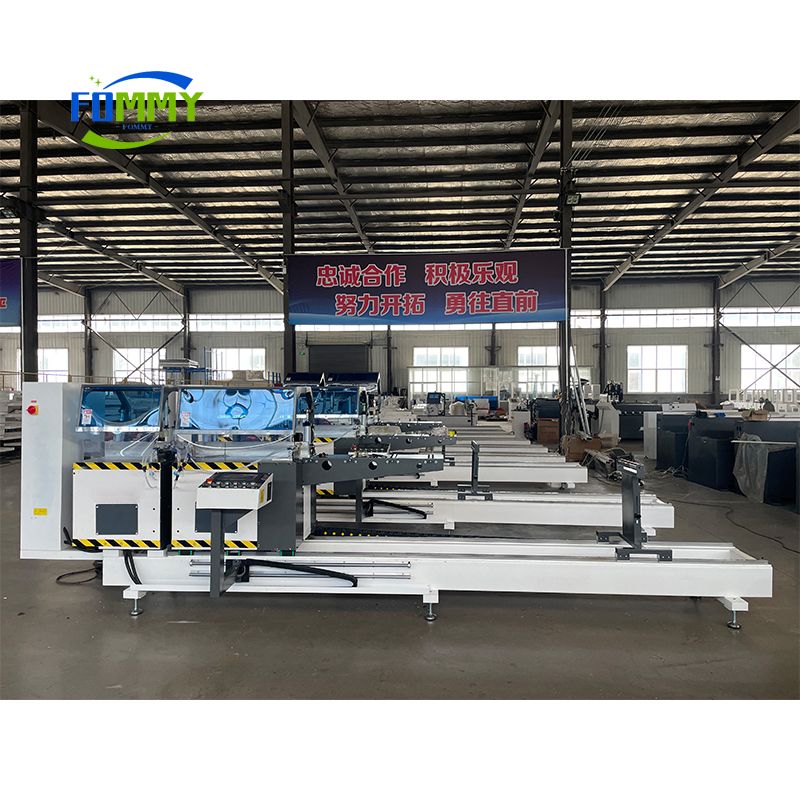

Model 500 45°90° CNC Triple Saws

Product parameter

SPINDLE MOTOR	22KW*3 SETS	AW BLADE SIZE	DIAMETER 500HOLE 30THICKNESS 4.5MM
TRAVELING MOTOR	SERVO MOTOR	POSITIONING METHOD	AUTOMATIC POSITIONING + AUTOMATIC FEEDING
MAIN MACHINE SIZE	520014001800MM	CUTTING ANGLE	45 DEGREE +45 DEGREE+90 DEGREE
OSITION ACCURACY	+0.03MM	OPERATING PRESSURE	0.6-0.8MPA
WIDEST/HIGHEST CUT	90 DEGREES MAXIMUM WIDTH 200/45 DEGREES MAXIMUM 150MM	EQUIPMENT WEIGHT	1100KG
LONGEST CUT	45 DEGREES- 45 DEGREES LONGEST 3500MM 45 DEGREES-90 DEGREES LONGEST 2800MM
SHORTEST CUT	45 DEGREES 45 DEGREES SHORTEST 490MM LEFT HEAD 45 DEGREES-90 DEGREES SHORTEST1000MM RIGHT HEAD 45 DEGREES-90 DEGREES SHORTEST 520MM
