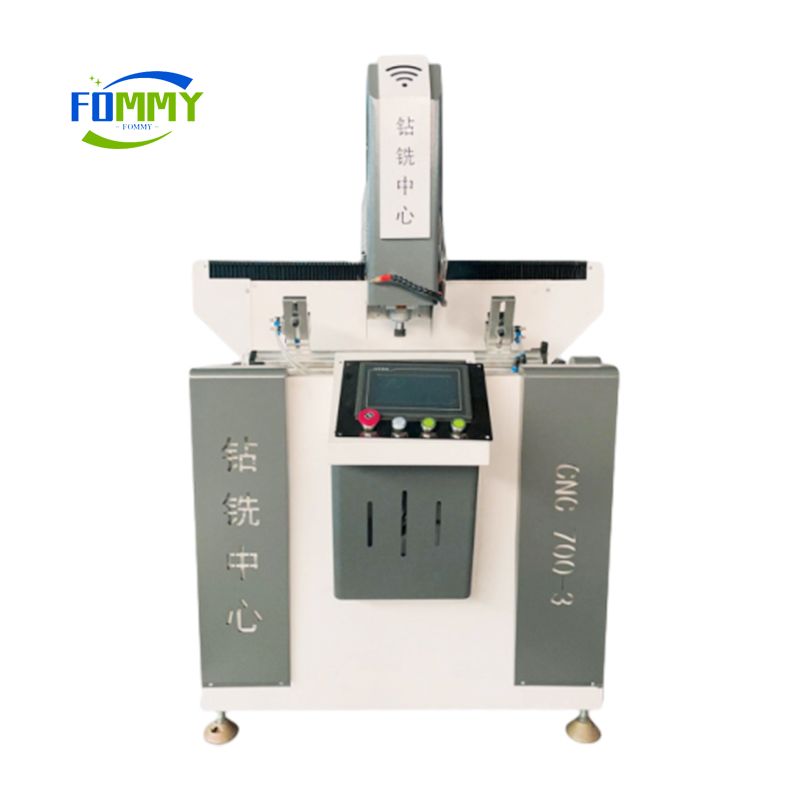

Model 700 CNC Drilling And Milling Machine

Inquire Now Next Product

Product feature

700 CNC drilling and milling machine, suitable for aluminum alloy minimalist glass doors, sliding doors, sliding doors, flat doors, broken bridge aluminum doors and Windows, all kinds of aluminum profiles drilling, milling groove, tapping work. Tapping bit, drilling bit, milling cutter imported tungsten steel base material, with wear resistance and red hardness, high speed drilling performance, high temperature resistance to prevent burning drill. Three-dimensional drilling and milling to meet customer processing needs

Scope of application

It can be widely applied to the drilling and milling work of all kinds of minimal glass doors, sliding doors and casement doors, broken bridge aluminum doors and windows, and all kinds of industrial aluminum materials.

Model 700 CNC Drilling And Milling Machine

Product details

Model 700 CNC Drilling And Milling Machine

Product parameter

SIZE	1200* 13501850MM (LW*H)	OPERATING SYSTEM	RED SEA CNC
PALLET	LENGTH 1200MMEFFECTIVE POSITIONING 1100MM	OPERATING PRESSURE	0.6--0.8MPA
SPINDLE MOTOR	2.2KW	PROCESSING HEIGHT	MAXIMUM 140MM
SPINDLE SPEED	18000R/MIN	MACHINE WEIGHT	230KG
TABLE DESIGN	THREE-SIDE AUTOMATIC TURNING	WORKING VOLTAGE	380V (220V CAN BE CUSTOMIZED)
CLIP WIDTH	150MM (0 DEGREE -90 DEGREE 90 DEGREE 3-SIDE FLIP 130MM)
