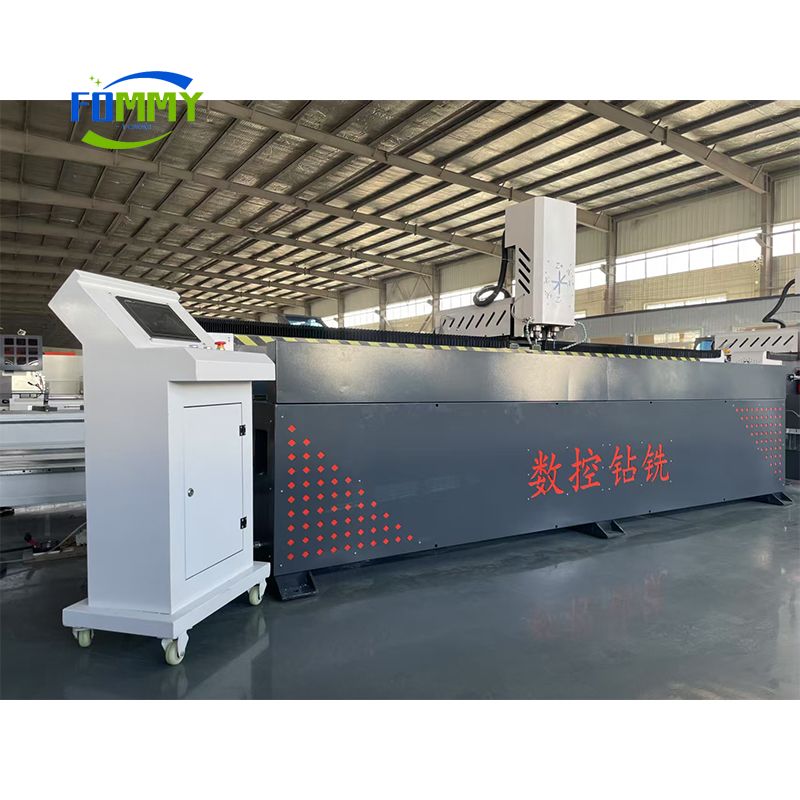

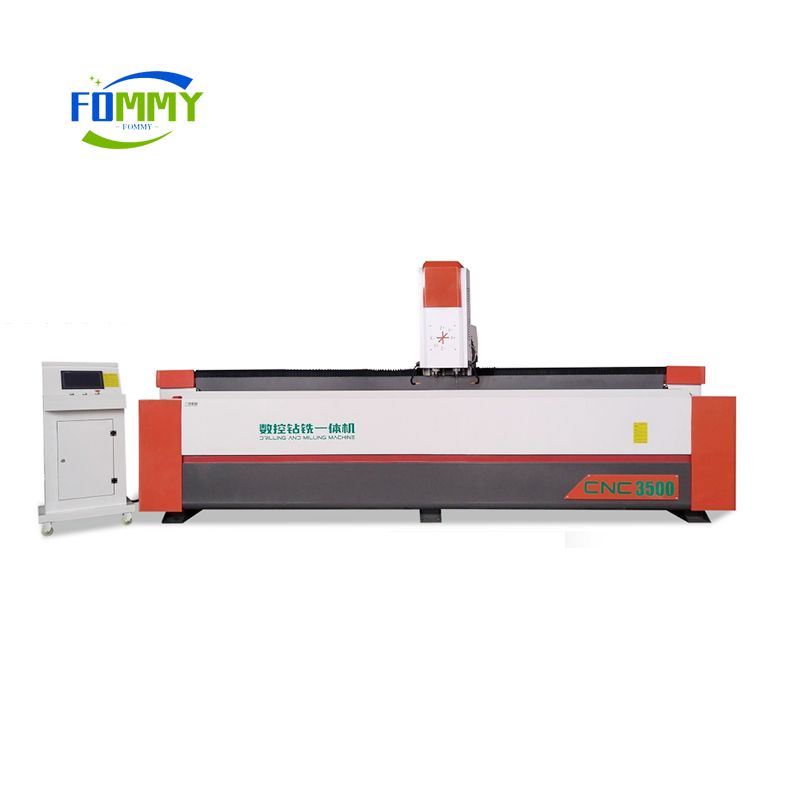

3500 type large automatic CNC drilling and milling machine, the machine adopts heavy-duty body thickened steel structure, international first-line brand electrical parts, pure servo motors, quiet and high-speed, the material can realize three-sided automatic flip, work efficiency is higher.
Product feature
3500 type large automatic CNC drilling and milling machine, the machine adopts heavy-duty body thickened steel structure, international first-line brand electrical parts, pure servo motors, quiet and high-speed, the material can realize three-sided automatic flip, work efficiency is higher. the machine is equipped with CAD guide function, which greatly improves the working efficiency. it can be widely applied to drilling and milling work of various minimal glass doors, sliding doors and swing doors, broken bridge aluminum doors and windows and various industrial aluminum materials.
Scope of application
CNC drilling and milling machine is suitable for slot and hole milling of sliding door, flat door, minimalist glass door, CNC drilling and milling corner code hole, lock box, lock hole, hinge hole, window lock, door lock, while processing four kinds of profiles, computer touch screen control.
It can realize the milling slot, milling hole two modes at will switch, with three side automatic turning function, all kinds of window locks, door locks can be processed, the right can process pin holes, injection holes, corner code holes, washing Angle, etc., is the most advanced CNC drilling and milling machine on the market, a device to achieve two modes of operation.
Application model
Application model: CNC drilling and milling machine have 3500, 3000,1500,800,700,350 models, etc., can process various sizes of profiles to meet market demand.

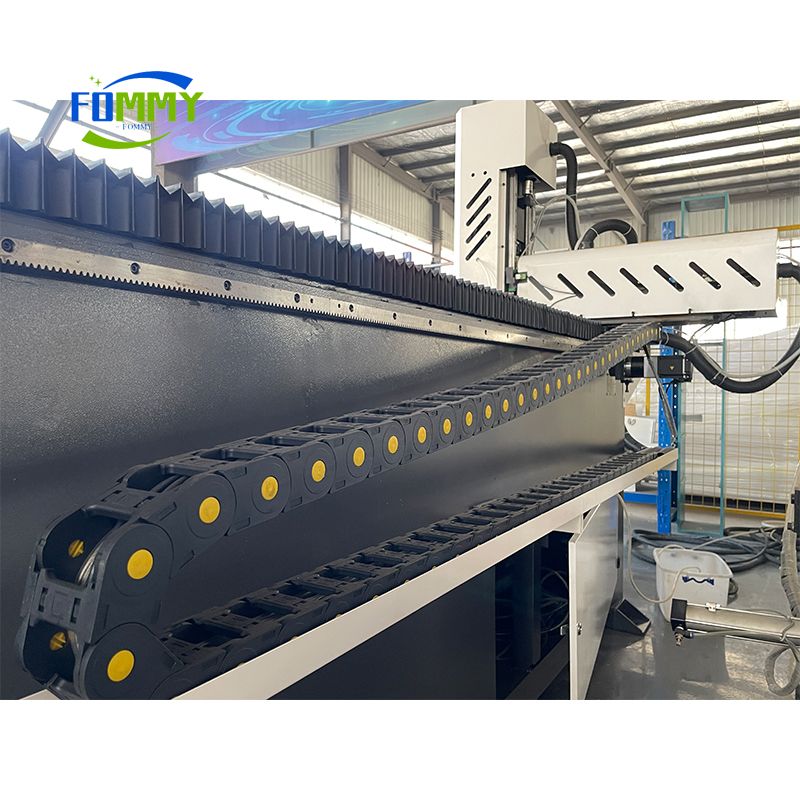

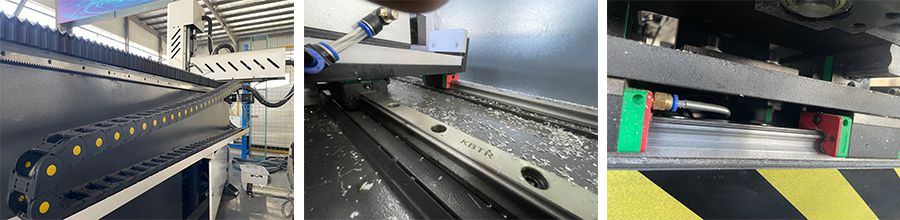

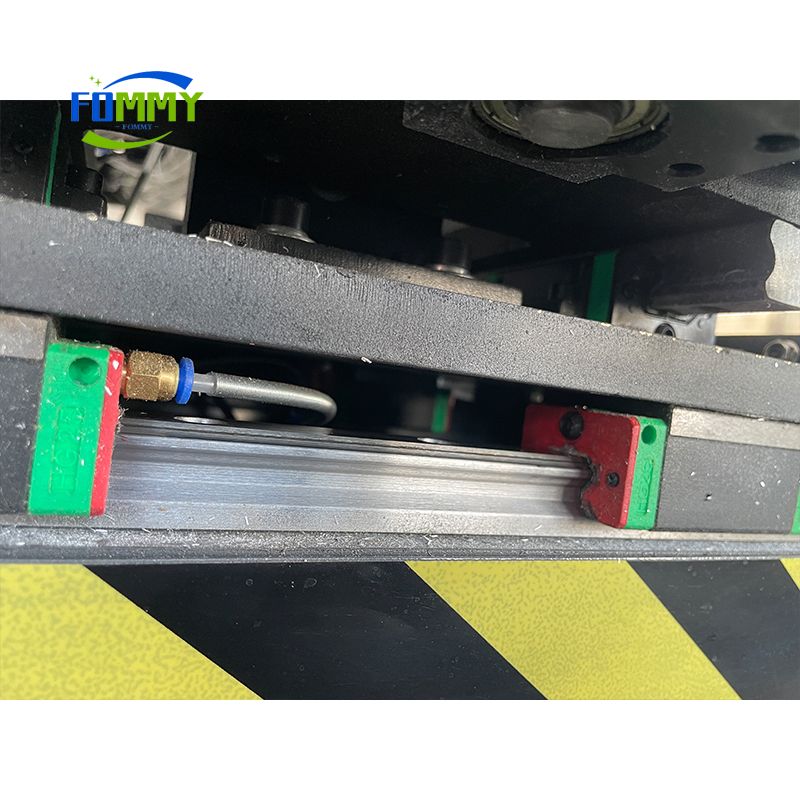

Product details
Product parameter
| EQUIPMENT SYSTEM: | QINGLAN CNC SYSTEM | NO. OF SPINDLES 2PCS | 2PCS |
| SPINDLE POWER | 3.5KW*2 | OPERATING PRESSURE | 0.6-0.8MPA |
| NUMBER OF HEADS | ONE DRILLING AND ONE MILING | POSTION ACCURACY | 0.03MM |
| EQUIPMENT SIZE | 4800*1600-2000MM | WORKING STROKE | 3200- 3500MM |
| MACHINE WEIGHT | 1200KG | CONTROL PANEL | 500*400* 1700MM |
| MOTOR TYPE | PURE SERVO MOTOR | CONTROL MODE | COMPUTER TOUCH SCREEN |
| TURNING MODE | THREE-SIDE AUTOMATIC FLIP | VOLTAGE | THREE- PHASE FOUR-WIRE |
