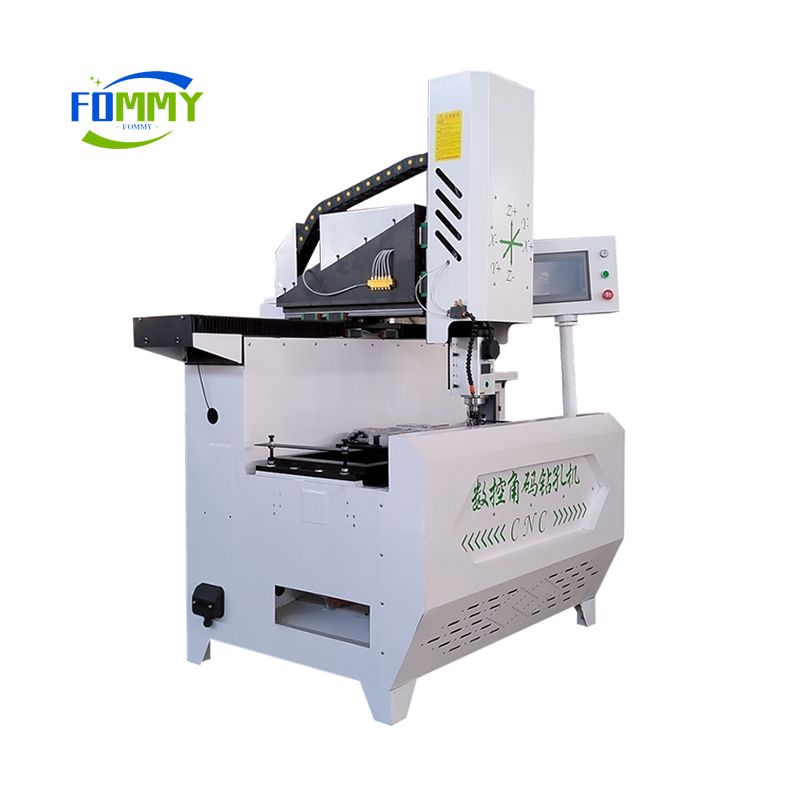

CNC Corner Code Drilling Machine

Inquire Now Next Product

Product feature

CNC corner code drilling machine can process 20 extremely narrow door profile corner code holes, but also can customize the processing of other glass doors, sliding door flat doors and various profiles of the workpiece opening work, a single time can be clamped eight materials, while drilling 32 corner code holes, no need to move materials manually

Product parameter

Number of motors	3
Positioning accuracy	0.03mm
Equipment weight	600kg
Number of cylinder fixtures	4 sets
Spindle power	3500W
Spindle speed	18000R/min
Equipment system	Motion control card
Maximum number of drill holes per operation	16*2
Conveying air pressure	0.6 - 0.8MPA
Control method	CNC display screen
