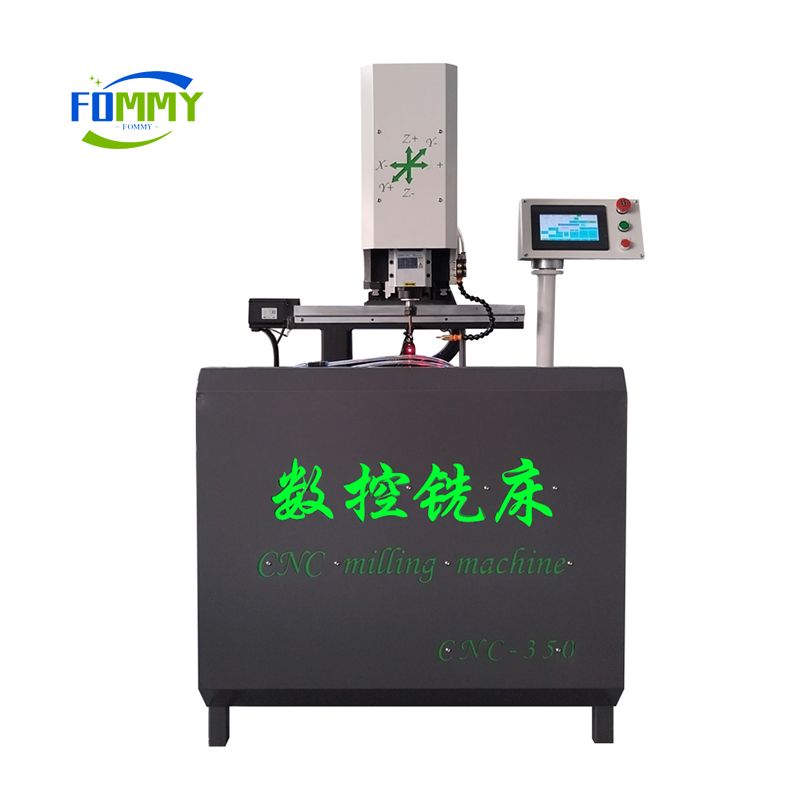

350 CNC Drilling And Milling Machine

Inquire Now Next Product

Product feature

350 type CNC milling machine, the machine adopts heavy duty body thickened steel structure, small volume, easy to move. voltage 380v and home electricity 220v optional,XYZ three-axis synchronous CNC system. built-in more than twenty sets of processing graphics program, 18,000 rpm high-speed spindle motor, even with milling drilling, infrared zero positioning, the machine on the left side of the1-meter ruler locator. universal spray nozzle automatic high-pressure spray cooling, Taiwan precision linear square rail ball screws , dual-cylinder pneumatic compression of the material, the machine has a table surface with a waste discharge outlet, electrical parts are adopt international first-line brand.

Scope of application

Various types of aluminum alloy sliding doors, sliding doors, system doors and windows, broken bridge aluminum doors and windows, and a variety of other house- hold profiles and a variety of continuous the development of aluminum profiles of the drilling and milling work.

350 CNC Drilling And Milling Machine:

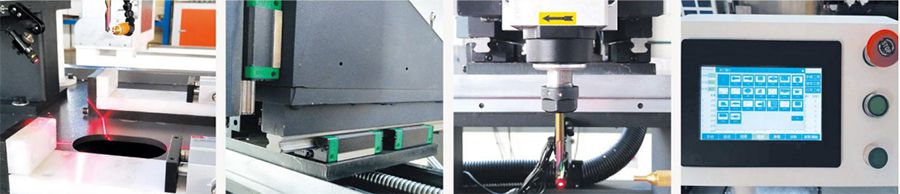

Product details

350 CNC Drilling And Milling Machine:

Product parameter

BAREBONE SIZE	10008001500MM	DIMENSION	20008001 500MM
XYZ STROKE	350 150 1 30MM	MACHINE WEIGHT	150KG
MACHINE SYSTEM	RED SEA CNC	SPINDLE SPEED	18000
CONTROL MODE	PC TOUCH SCREEN	OPERATING PRESSURE	0.6-0.8MPA
VOLTAGE	380V 220V OPTIONAL	SPINDLE POWER	2.2KW
